ZWCAD

  • Powerful and Fast CAD: Do More in Less Time

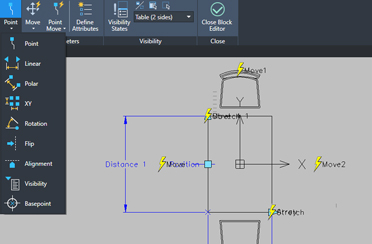

    ZWCAD is packed with all the features you need to get your work done. But that’s not all – it also includes advanced features like Flexiblock to help you tackle complex tasks easily. And with innovative Smart series, you can streamline your workflow like never before.

  • Compatible and Comfortable: Get Started within One Hour

    Compatible
    Highly compatible with DWG, DXF, DWT, and other common file formats.

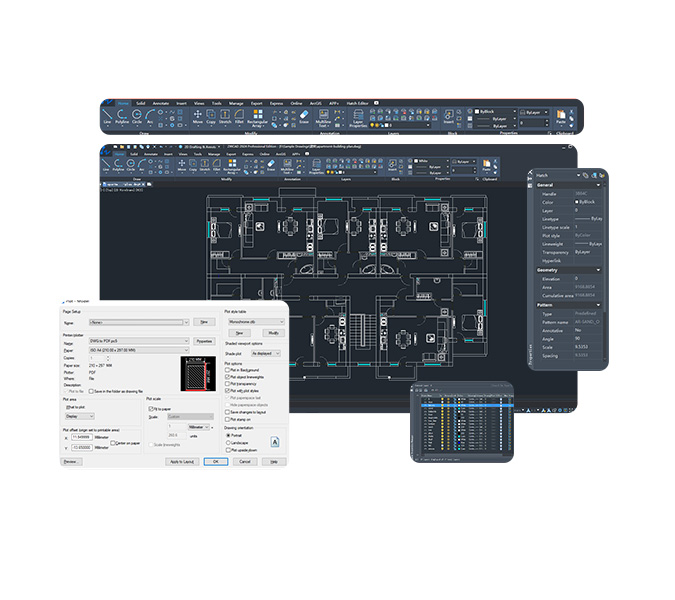

    Familiar Environment
    Familiar interface, commands and aliases. Choose from Classic or Ribbon, Dark or Light.
    Customizable
    Develop or migrate third-party applications easily with APIs including LISP, VBA, ZRX, and .NET.
    One-step Migration
    Easily migrate your printers, templates, fonts, command alias and hatch patterns.

  • Features

    Sheet Set Manager
    View, access, manage, and plot multiple drawings. All of them can be done in one panel.
    Point Cloud
    Process point cloud data in ZWCAD easily to improve design accuracy. You can attach, manage, and edit them such as cropping and creating section plans.

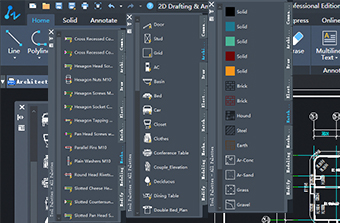

    Tool Palettes
    Drag and use mechanical, architectural, electrical blocks; store custom blocks
    Quick Properties panel
    View and edit properties easily with Quick Properties Panel. The panel can be customized to fit your needs.
    Digital Signature
    Ensure original and reliable source of drawing data
